Append-heavy latency match · SyFI Trace Atlas

Overview

Question. Are append-heavy agent steps actually slower than otherwise-matched prefix-heavy steps? Not just “append-heavy rows are slower on average”, but: after matching on provider, model, segment kind, total input length, and output length, do append-heavy rows separate cleanly from prefix-heavy ones?

Figures 2

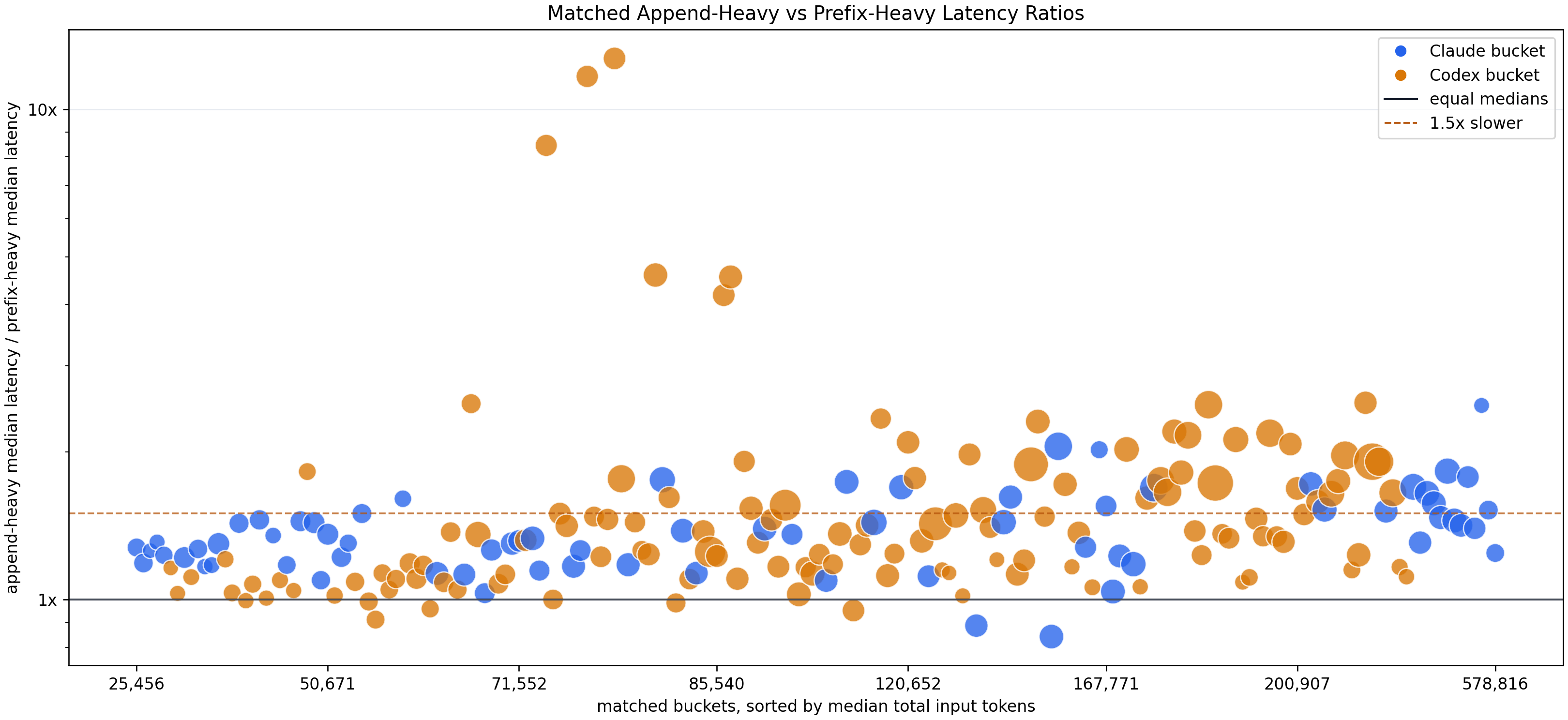

Fig. 1Matched-bucket append-heavy latency effects.

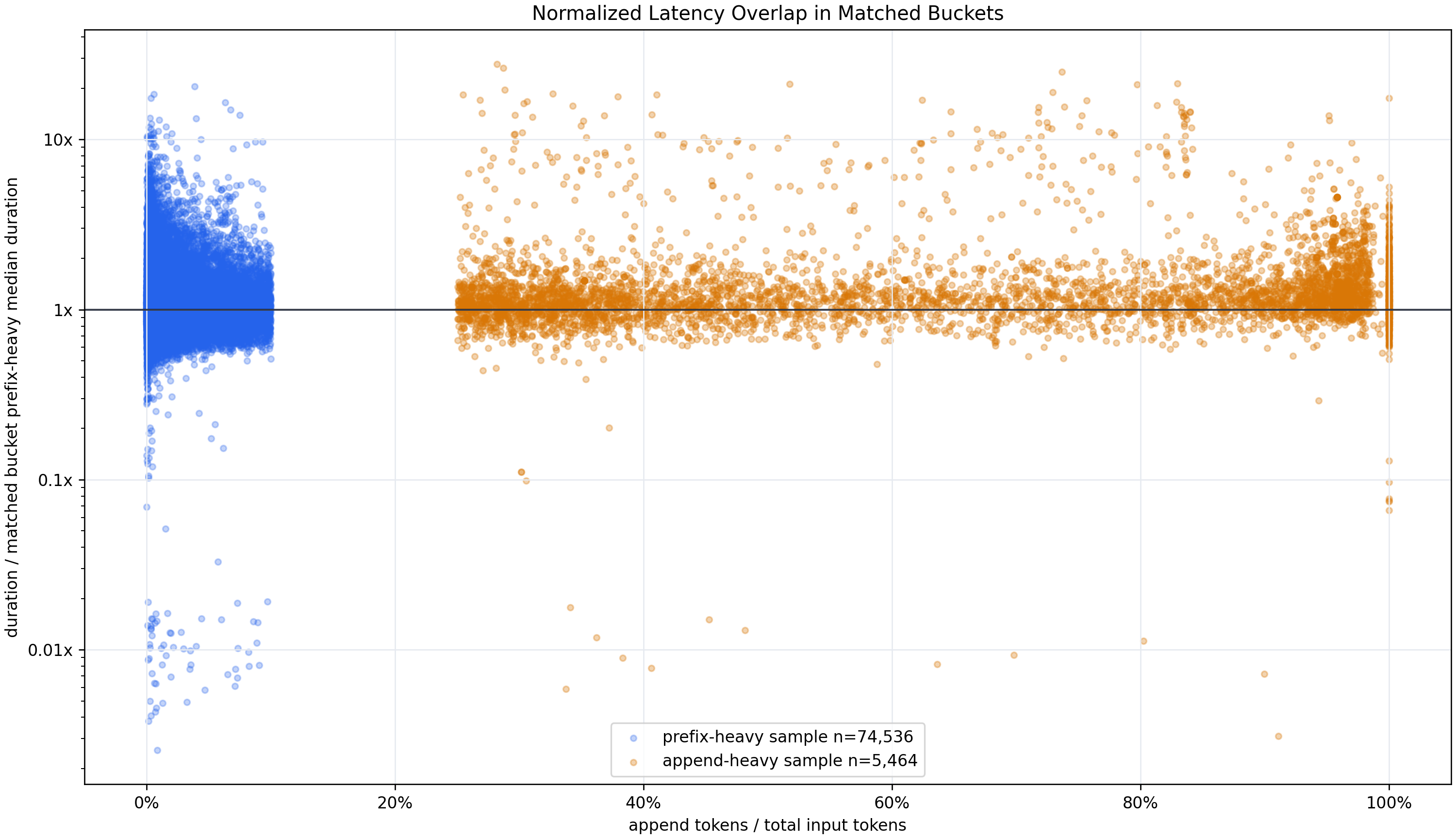

Fig. 2Normalized latency overlap for append-heavy and prefix-heavy rows.

Reference

Input

../timing_fit/timing_fit_trace.csv (override with -i) — the long-form timing-segment CSV produced by ../timing_fit/collect_timing_fit_trace.py. Not the JSONL trace. artifacts/run_all.py builds it automatically from --input before running this experiment.

Method / key assumptions

Rows are bucketed by (provider, model, segment_kind, total-token bin, output-token bin). Within each bucket, append-heavy rows (append share ≥ --append-heavy-share) are compared against prefix-heavy rows (append share ≤ --prefix-heavy-max-append-share).
Reports two things:
- effect size — how often an append-heavy row is slower than a matched prefix-heavy row (pair_weighted_append_slower_probability);
- separation quality — whether a duration threshold distinguishes the two classes after normalizing each row by its bucket’s prefix-heavy median latency (global_normalized_best_balanced_accuracy).
Durations are trimmed per group (--trim-quantile, default 0.99) and filtered to [--min-duration-ms, --max-duration-ms] to drop implausible spans.

How to run

Recommended dispatcher path:

uv run python artifacts/run_all.py \
  --only llm_generation/append_vs_prefix_latency \
  --input trace/llm_round_trace.public.jsonl

The dispatcher builds ../timing_fit/timing_fit_trace.csv from --input first. Manual direct runs assume that CSV already exists:

uv run python artifacts/llm_generation/append_vs_prefix_latency/analyze.py

Outputs (written here)

append_vs_prefix_latency.json / .md — verdict + summary.
append_vs_prefix_matched_buckets.csv, append_vs_prefix_normalized_rows.csv
append_vs_prefix_bucket_effects.png, append_vs_prefix_normalized_overlap.png

Self-contained PNGs

Each PNG embeds this README, the CSVs, and analyze.py. Unpack with python artifacts/utils/png_sidecar.py extract <png>.
